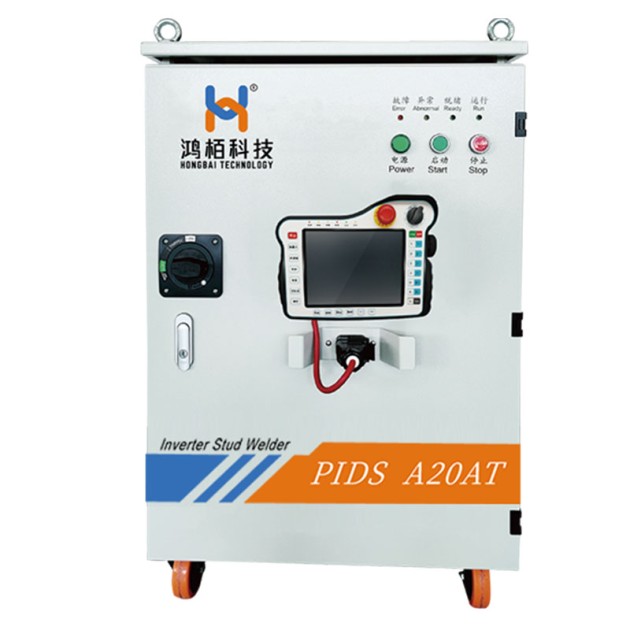

• 主机型号：PIDS-A20AT

• 工作方式：手动/半自动/自动

• 支持螺柱材质：钢制螺柱

• 通信总线：DeviceNet、profinet、profibus、CC-Link、EtherNet/IP等

• 伺服驱动器：集成

• 输入电源：AC 3*380±15% 50~60Hz

• 输出功率：120kW

• 空载电压：110V

• 焊接电流范围：100-2000A

• 焊接电流控制精度误差：≤2%

• 焊接时间调节范围：5~150ms

• 焊接螺柱直径：3-12mm

• 额定占载率：2%

• 主机重量：138kg

• 主机体积：mm*mm*mm

产品简介 PRODUCT INTRODUCTION
该焊接系统主机采用50kHz全桥软开关、交直流输出、纯数字电流环直线伺服提升技术；主机配置5路焊接接口，可实现不同类型的焊接终端同时实施焊接作业。该设备的额定焊接电流可达2000A
The welding system host adopts 50kHz full bridge soft switch, AC and DC output, pure digital current loop linear servo lifting technology; the host is equipped with 5 welding interfaces, which can realize simultaneous welding operations by different types of welding terminals.The rated welding current of the equipment can reach 2000A

产品显著特点 PRODUCT FEATURES

A、电路拓扑:50kHz全桥软开关+交直流输出技术
B、电流控制技术:100K硬件数字电流闭环控制
C、控制系统架构: ARM+FPGA
D、人机界面：8寸编程界面，支持多语言操作
E、集成RJ45、USB接口：支持多种协议，适配主流现场总线
F、 数据记录器支持数据库和海量存储
G、 Weld Nic群控软件

A. Circuit topology: 50 kHz full bridge soft switching + AC / DC output technology
B. Current control technology: 100k hardware digital current closed loop control
C. Control system architecture: arm + FPGA
D. Man machine interface: 8-inch programming interface, support multi language
operation
E. Integrated RJ45, USB interface: support a variety of protocols, adapt to the
mainstream fieldbus
F. Datalogger supports database and mass storage
G. Weld NIC group control software
